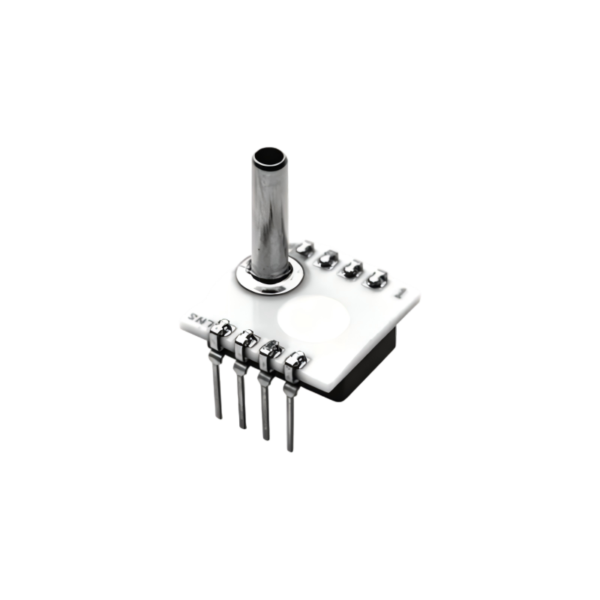

NovaSensor NPC-410 Series

NovaSensor NPC-410 Series

Medium Pressure Sensors

The NPC-410 Series of solid state pressure sensors are designed to provide a cost effective solution for applications that require long-term stability and high volume. Packaged in a dual in-line configuration, the NPC-410 Series is intended for printed circuit board mounting. Optional pressure port and lead configurations give superior flexibility in low profile applications where pressure connection orientation is critical.The NPC-410 Series is based on NovaSensor’s advanced SenStable® piezoresistive sensing technology. The latest techniques in silicon micromachining have been used to ion implant piezoresistive strain gages into a Wheatstone bridge configuration, which is integrally formed on a micromachined diaphragm. Constant current or constant voltage can be used for sensor excitation. Offset and sensitivity temperature compensation and calibration can be achieved by adding external resistors. Additionally, the NPC-410 series is available in pressure ranges from 0 psi to 5 psi (0 bar to 0.34 bar) through 0 psi to 100 psi (0 bar to 7 bar). Please contact NovaSensor for other pressure ranges.

Application
  • Industrial automation
  • Air flow monitors
  • Process control
  • Medical equipment
  • Underground cable leak detection

Features
  • Solid state reliability
  • Accuracy: ±0.1%
  • PCB-mountable package
  • Dual In-line Package (DIP)
  • Individual device traceability

Specifications

Pressure Ranges Value
Gauge and Differential 5, 15, 30, 50 and 100 psi (0.34, 1, 2, 3.4 and 7 bar)
Absolute 15, 30, 50 and 100 psi (1.03, 2.06, 6.89 bar)

Parameter Value
Operating Temperature Range -40°F to 257°F (-40°C to 125°C)
Storage Temperature Range -67°F to 302°F (-55°C to 150°C)
Weight 0.005 lb (2.5 g)

Performance Parameters(1) Minimum Typical Maximum Units Notes
Full Scale Output (FSO) 105 125 155 mV
Zero Pressure Output -50 0 50 mV 2
Linearity — — 0.1 %FSO 3, 7
Pressure Hysteresis — — 0.1 %FSO
Input and Output Impedance 2500 4000 6000 Ω
Thermal Accuracy–Span — 1.5 — %FSO 2,4
Thermal Accuracy–Zero — 0.5 — %FSO 2,4
Coefficient-Resistance Temperature — 0.3 — %/°C 4
Thermal Hysteresis–Zero — 0.1 — %FSO 4
Pressure Overload — — 3X Rated 5, 8
  1. Ambient temperature = 77°F (25°C), unless otherwise noted. Supply current = 1.5 mA. Gauge and differential pressure devices are tested by applying pressure to the positive differential port (P2) and venting to atmosphere the reference port (P1).
  2. External resistors can be added to reduce temperature errors and calibrate the offset and FSO.
  3. Best fit straight line.
  4. Temperature range 32°F to 140°F (0°C to 60°C), reference to 77°F (25°C).
  5. 3X or 200 psi (13.78 bar) maximum, whichever is less.
  6. Exposed materials are pyrex, ceramic, silicon, epoxy, RTV and stainless steel.
  7. 5 psi (0.34 bar) specifications: Linearity: 0.25 ±%FSO.
  8. Port 1 is limited to 60 PSIG for differential and absolute pressure sensors. Contact factory for 50 PSIA/D and 100 PSIA/D units.

Product Documents

Part Numbers

Ordering Information: NPC-410

The code number to be ordered may be specified as follows:

Code Pressure Ranges
005
015
030
050
100		 5 psi (34.5 kPa)
15 psi (100 kPa)
30 psi (200 kPa)
50 psi (345 kPa)
100 psi (700 kPa)
Code Type
A
G
D		 Absolute
Gauge
Differential
Code Lead Configuration
1
3		 Up
Down
Code Tube Options
L
S
N		 Long
Short
None*
NPC-410 -005 -A -1 -L (Example Part No.)
*Order NPC-1210-XXXG-XN in place of NPC-1210-XXXD-XN.
