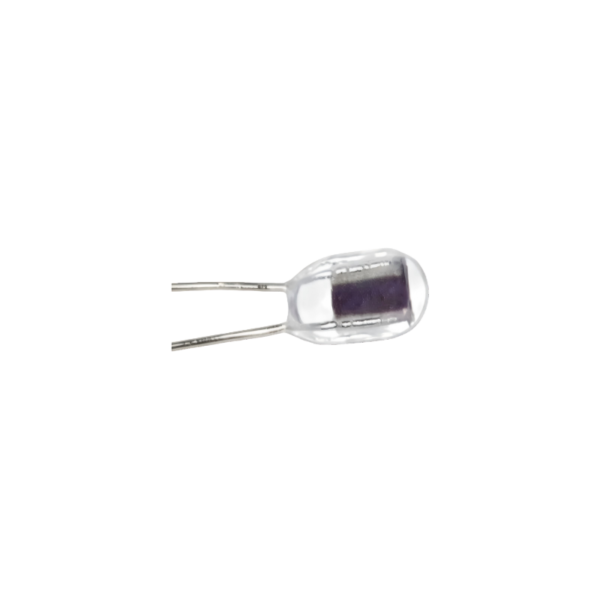

Glass GC Series – Glass-Encapsulated Chip

Thermometrics GC Series (GC11/GC14/GC16) of Glass-Encapsulated NTC Chip Thermistors consists of small glass-encapsulated chip thermistors on fine diameter platinum alloy lead wires. Suitable for temperature measurement, control and compensation applications, as well as self-heated applications, such as liquid level sensing or gas flow measurement.

Application
  • Sub-sea monitoring
  • High speed fluid temperature measurement and control
  • Industrial applications

Features
  • Ultra-fast response times
  • Unaffected by severe environmental exposures
  • Relatively flat frequency response
  • Ease of handling

Specifications

Thermal & Electrical Properties
Body Dimensions Maximum Diameter 0.085 in (2.2 mm)
Body Length 0.5 in (12.7 mm)
Lead Wires Nominal Diameter 0.012 in (0.30 mm)
Lead Length 0.875 in (22 mm)
Lead Material Tinned dumet
Thermal Time Constant Still Air @ 25°C (77°F) 0.10 sec
Plunge into Water 7 msec
Dissipation Constant Still Air @ 25°C (77°F) 0.05 mW/°C
Still Water @ 25°C (77°F) 0.25 mW/°C
Power Rating (In Air) Maximum Power Rating 0.006 Watts

Product Documents

Part Numbers

Part numbers are described in detail within the datasheet.
