NovaSensor NPA Series
Surface-Mount Pressure Sensors

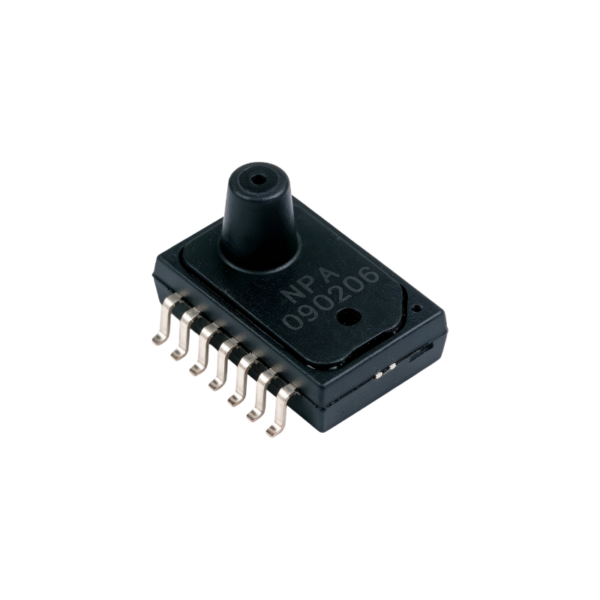

NovaSensor NPA Series of Surface-Mount Pressure Sensors is provided in a miniature size as a cost effective solution for applications that require calibrated performance. Packaged in a SOIC14 pin surface mount, the NPA Series is available in gauge, absolute and differential pressure ranges with either mV, amplified analog or digital outputs. The sensor is intended for printed circuit board mounting and delivered in tape and reel form to simplify manufacturing handling.
Features
- Surface-mountable
- Differential, gauge, absolute and low pressure
- 2” H2O to 30 PSI full scale
- Output Options: Amplified Analog, Digital Serial (14bit), Digital I2C, Uncalibrated mV
- On-chip temperature sensor in digital mode
- Operating Temperature Range: -40°C to 125°C
- Total Error Band: < ±1.5% FSO
- Proof Pressure: Up to 60 psi
Specification
| Environmental Parameters: | Value |
| Operating Temperature Range | -40 to +125°C (-40 to +257°F) |
| Compensated Temperature Range | -0 to 60°C (+32 to +157°F) |
| Storage Temperature Range | -40 to +125°C (-40 to +257°F) |
| Mechanical Parameters: | Value |
| Weight | ~1 gram |
| Common Parameters: | Units | Min | Typ | Max |
| Accuracy (Total Error Band) | %FSO | -1.5 | 1.5 | |
| Proof Pressure (10″ H2O to 1 psi) | psi | – | 5 | – |
| Proof Pressure (5 psi to 30 psi) | psi | – | 60 | – |
| Maximum Package Pressure | – | – | 60 | – |
| Pressure Ranges | – | 10” H2O | – | 30 psi |
| Series | Excitation Voltage | Min/Max | Notes |
| NPA-100 | 1.5mA | – | NPA Uncompensated, mV |
| NPA-300 | 3.3V | 3.135 V to 3.465 V | NPA Compensated, low power amplified analog |
| NPA-500 | 5.0V | 4.75 V to 5.25 V | NPA Compensated, amplified analog |
| NPA-600 | 5.0V | 4.75 V to 5.25 V | NPA Compensated, digital serial |
| NPA-700 | 5.0V | 4.75 V to 5.25 V | NPA Compensated, digital I2C |
| NPA-730 | 3.3V | 3.135 V to 3.465 V | NPA Compensated, digital I2C |
Product Documents
📄 NovaSensor NPA | Surface Mount Pressure Sensors – Datasheet
📄 NovaSensor NPA | Low Pressure Surface Mount Pressure Sensors – Datasheet
📘 NovaSensor NPA | Pressure Sensor – Application Guide
💡 NovaSensor Product Spotlight | NPA Pressure Sensors for Respiratory Care
💡 NovaSensor Product Spotlight | NPA Surface-Mount Pressure Sensors
⚙️ NovaSensor Application Spotlight | MEMS Pressure Sensor Solutions for Industrial Applications
Part Numbers
| Part Number | Description |
| NPA-100 | mV Output, Ratiometric Uncalibrated Sensor |
| NPA-300 | Analog Amplified Output, 3.3Vdc Excitation, Calibrated Sensor |
| NPA-500 | Analog Amplified Output, 5Vdc Excitation, Calibrated Sensor |
| NPA-600 | Zacwire- Digital Serial Output, Calibrated Sensor, 2 Byte |
| NPA-601 | Zacwire- Digital Serial Output, Calibrated Sensor, 3 Byte |
| NPA-700 | I2C – Digital Output, 5Vdc Excitation, Calibrated Sensor, 2 byte |
| NPA-730 | I2C – Digital Output, 3.3Vdc Excitation, Calibrated Sensor, 2 byte |
